Product Name: Check Valve Repair Kit (15 GPM, 60K) / Part No. 302033-4

Description:
This component is a check valve repair kit specifically engineered for 60,000 PSI (approximately 4,137 bar) waterjet intensifier pumps with a flow rating of 15 GPM (gallons per minute) . It is a pre-assembled collection of precision consumable parts designed to overhaul the check valve assemblies, which are critical components that control the one‑way flow of high‑pressure water into and out of the intensifier cylinder .

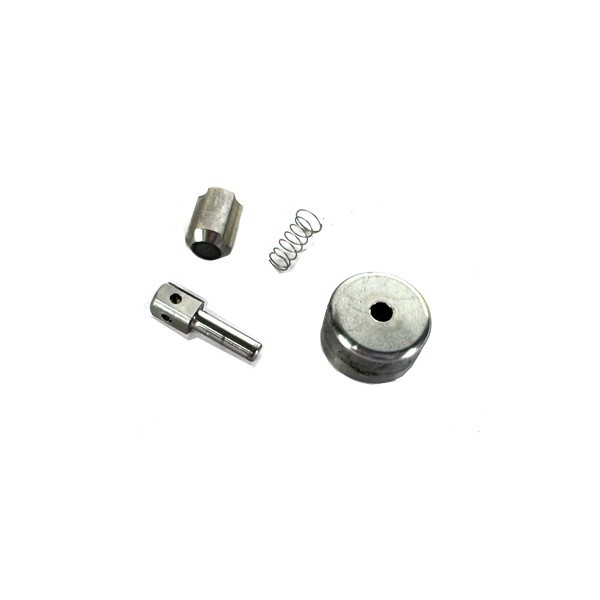

The kit includes the essential wear components such as the check valve poppet (valve core), valve seat, spring, O‑rings, seals, and backup rings . All parts are manufactured from high‑grade, wear‑resistant materials to withstand the ultra‑high pressure, erosion, and constant opening/closing cycles inherent in waterjet operation . A high‑quality check valve repair kit is essential for maintaining pump efficiency, stable pressure output, and long‑term system reliability .

Applications:

• Rebuilds the inlet and outlet check valve assemblies in 60K, 15 GPM waterjet intensifier pumps

• Restores the valve's ability to maintain unidirectional water flow and prevent destructive backflow

• Used when symptoms of check valve failure appear: pressure drop, erratic intensifier cycling, overheating check valve bodies, or water leakage

• Compatible with H2O Jet, Flow, AccuStream, KMT, and other standard waterjet intensifier systems

Features:

• Complete Component Set: Contains all necessary poppets, seats, springs, O‑rings, and seals for a full check valve overhaul

• High‑Pressure Compatibility: All components are engineered for continuous operation at 60,000+ PSI (4,100+ bar)

• 15 GPM Flow Rating: Specifically designed for the flow characteristics of 15 GPM systems

• OEM Quality: Precision‑manufactured to meet or exceed original equipment specifications

• Wear‑Resistant Materials: Components are made from hardened steel, ceramics, and high‑grade elastomers to withstand severe operating conditions

Maintenance:

When to Replace (Failure Diagnosis) :

• Pressure Drop: A significant reduction in cutting pressure indicates worn check valve components

• Overheating Check Valve Body: If a specific check valve body feels hotter than the opposite side (exceeding 120°F / 49°C), it indicates excessive back‑flow through that valve

• Erratic Intensifier Cycling: The hydraulic piston slams to the end of travel or cycles irregularly due to excessive back‑flow

• Pressure Spiking: Repetitive spikes in the high‑pressure water pressure indicate leaking valves

• Visible External Leakage: Water weeping from the check valve body or its connections

• Scheduled Preventive Maintenance: Most manufacturers recommend servicing check valves every 800‑1,500 operating hours

Replacement Guidelines:

• Full Depressurization (Critical): Before any maintenance, place the main electrical disconnect in the OFF position, bleed down all high‑pressure lines, and follow lockout/tagout procedures

• Replace as a Complete Set: The seat, spring, and poppet valve should be replaced together as a set. If one component requires replacement, replace all three

• Clean Installation: Perform the rebuild in a clean area to prevent contamination. Thoroughly clean the check valve body cavity and all sealing surfaces before installing new components

• Lubrication: Apply a thin film of anti‑seize compound (e.g., "Goop") to the specified faces only. DO NOT apply lubricant to sealing faces

• Torque Compliance: When reassembling, tighten components (e.g., outlet body) to the specific torque values listed in the equipment service manual (e.g., 30‑50 ft‑lbs / 41‑67 Nm)

• Inspect Related Components: While servicing check valves, inspect the sealing head body for pits, scratches, or erosion, and refinish as necessary

• Component Orientation: Ensure proper orientation of parts such as the poppet seat (rounded side faces the check valve body)

• Cross‑Reference Compatibility: This kit is also known under other industry part numbers, often reflecting the newer H2O Jet designs for older Flow systems
