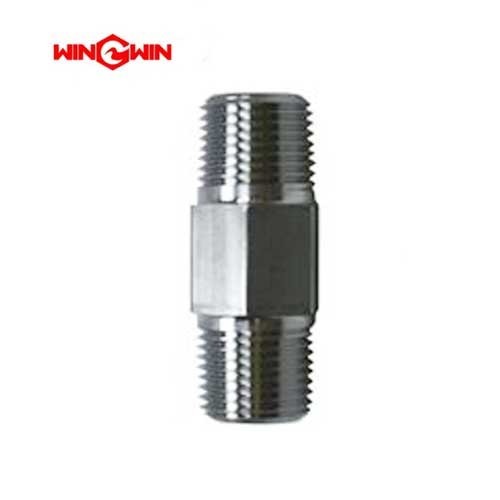

Product Name: Check Valve Assembly (Low-Pressure Water Filter) – Part No. 05135652

Description:
This component is a check valve assembly specifically designed for the low-pressure water filter system in waterjet cutting equipment . Its primary function is to ensure one-way (unidirectional) flow of the low-pressure water supply as it passes through the filter assembly and into the intensifier pump, preventing potentially damaging backflow .

According to the official parts diagram for the Low-Pressure Water Filter Assembly (P/N 72155629), this check valve assembly is listed as Item 9 with a quantity of 1 required per assembly . The low-pressure water filter assembly is a critical system that purifies water at relatively lower pressures to remove impurities, sediments, and contaminants before the water reaches the high-pressure intensifier pump . This protects the most sensitive and expensive components of the system, such as the high-pressure seals, check valves, and the cutting head‘s jewel orifice, from premature wear, erosion, and clogging .

The check valve operates automatically based on pressure differential, opening when water flows in the forward direction and closing tightly when flow attempts to reverse .

Applications:

• Installed as a sealing component within the Low-Pressure Water Filter Assembly (P/N 72155629) .

• Ensures one-way flow of filtered low-pressure water to the intensifier pump, preventing destructive backflow .

• Protects the high-pressure pump, intensifier seals, and cutting head components from contamination.

• Compatible with 60,000-94,000 PSI (approximately 4,137-6,480 bar) waterjet systems.

Features:

• Unidirectional Flow Control: Allows water to flow in only one direction, preventing backflow that could damage the pump and filter system .

• Low-Pressure Compatibility: Specifically engineered for the low-pressure water intake circuit (not the ultra-high pressure line).

• Critical Safety Component: Prevents reverse flow that could introduce contaminants into the clean water supply or cause water hammer .

• Corrosion-Resistant Construction: Typically manufactured from materials suitable for fresh or treated water supply environments.

• Direct OEM Replacement: Interchangeable with manufacturer specifications as listed in the official parts diagram (Item 9 in Assembly 72155629) .

Maintenance:

Failure Diagnosis (When to Replace):

• External Water Leakage: Visible water weeping from the check valve assembly or filter housing indicates seal failure requiring immediate replacement.

• Backflow (Reverse Flow): If water flows backward when the pump is off, the internal sealing mechanism (poppet or ball) has failed, and the valve must be replaced.

• Pressure Drop / Flow Restriction: A significant reduction in water flow or low-pressure water supply pressure may indicate the valve is stuck or partially blocked.

• Contamination: If debris is found in the filter housing or the valve is stuck due to particles, the system upstream should be inspected.

• Scheduled Preventive Maintenance: It is standard practice to inspect check valves during scheduled filter changes (e.g., every 500-1,000 operating hours) or during major pump overhauls. Replace immediately if any signs of wear, corrosion, or leakage are detected.

Inspection and Replacement Guidelines:

• Full Depressurization (Critical): Before any maintenance, place the main electrical disconnect in the OFF position, fully depressurize the waterjet system and the low-pressure water supply, and follow lockout/tagout procedures. Never service a pressurized system.

• Clean Installation: When replacing the valve, thoroughly clean the mating ports and sealing surfaces in the filter assembly head.

• Lubrication: Apply a thin film of clean water or manufacturer-recommended lubricant to O-rings and sealing faces during installation to prevent pinching and ensure proper seating.

• Torque Compliance: Tighten the valve to the specific torque value listed in the equipment service manual to prevent thread damage or leaks.

• Replace as a Complete Assembly: If the valve is faulty, replace it as a complete unit to ensure safety and reliability. Do not attempt field repairs on the internal sealing mechanism.

• Cross-Reference Information: Part number 05135652 is listed as Item 9 in Low-Pressure Water Filter Assembly 72155629 . It is also known as a check valve for model NC-3015E .
