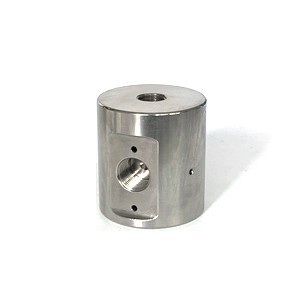

Product Name: Valve Body (3-Port, Round) – Dump Valve / Pneumatic Valve Body (Part No. 20427648)

Description:
The 3-Port Pneumatic Valve Body 20427648 is a precision-machined, high-strength component designed as the central fluid and air distribution housing for the pneumatic dump valve assembly in ultra-high pressure waterjet cutting systems . This specific variant is a 3-port round-style body .

Its core function is to direct high-pressure water safely from the intensifier to the cutting head and to provide a rapid pressure release (dump) path when the valve is actuated, serving as a critical safety device . It is rated for continuous operation at 60,000 PSI (approximately 4,137 bar) . The valve body is configured as Normally Open (NO), meaning the internal flow path allows high-pressure water through the system when no pneumatic signal is applied .

The component is typically manufactured from high-strength stainless steel or alloy steel to withstand extreme pressure cycling and resist corrosion . It is an OEM replacement part fully compatible with major waterjet systems, including KMT, FLOW, and OMAX .

Applications:

• Mounted in the high-pressure water line as the core of the bleed down/dump valve safety assembly

• Controls and directs the flow of ultra-high pressure water by opening and closing the internal flow path

• Serves as the primary safety dumping mechanism to vent system pressure in emergencies or during shutdowns

Features:

• 3-Port Round Body Design: Features two side ports with 3/8" HP connections and a bottom port designed for a specific adapter (VL49830904)

• Normally Open (NO) Configuration: Default state is open, allowing water flow; it closes when pneumatic air pressure is applied

• High Strength Construction: Manufactured from high-grade steel or stainless steel for maximum durability and corrosion resistance

• Precision Machining: CNC-machined to exact tolerances for airtight sealing and accurate timing of pressure shifts

• High Pressure Rating: Engineered for continuous operation at 60,000 PSI / 4,100 bar

Maintenance:

Failure Diagnosis (Signs of Wear or Malfunction)

• Inability to Build Pressure (Loss of Cutting Power): The pump runs but the system cannot maintain rated cutting pressure, indicating internal leakage within the valve body

• Persistent External Water Leakage: Visible water weeping from the valve body housing indicates seal failure or body damage

• Intensifier Cycling Issues: The hydraulic piston shifts irregularly or fails to shift after tool closure, pointing to a failing dump valve

• Overheating Components: Unusual heat buildup in the valve body area due to internal leakage can indicate immediate need for service

Repair and Replacement Guidelines

• Critical Safety Device: The bleed down/dump valve is a primary safety component. Service it immediately if the above symptoms appear to prevent system damage

• Complete Depressurization (Critical): Before any maintenance, shut down the hydraulic pump, fully depressurize the high-pressure water lines, shut off the air supply, and follow lockout/tagout procedures

• Two-Wrench Method: Always use two correctly sized wrenches (one to counter-hold the valve body, one to turn the fitting) when disconnecting HP lines to avoid twisting stress on the body

• Inspect Internal Bores and Seats: During rebuild, thoroughly clean the valve body and inspect the bore and internal sealing cone angles for pitting, scoring, or deformation. Damage to the valve body itself is generally irreparable, requiring a full body replacement

• Use Repair Kits and Anti-Seize: When rebuilding, use the specific OEM repair kit (seat, stem, seals). Apply high-pressure thread lubricant (“Blue Goop” or Silver Grade) to all threads during reassembly to prevent galling
