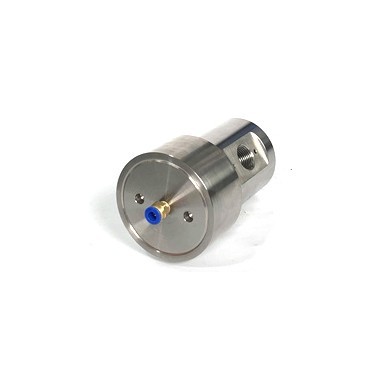

Product Name: Pneumatic Valve Actuator Assembly, Normally Open (3-Port) – Part No. 20427739
Description:
The Pneumatic Valve Actuator Assembly 20427739 is a critical control component designed for the high-pressure dump valve (bleed-down valve) assembly in waterjet cutting systems . It is a 3-port round, normally open (NO) pneumatic actuator assembly that operates within 60,000 PSI (approximately 4,137 bar) systems .
This actuator assembly is responsible for converting compressed air energy into precise linear mechanical motion to operate the dump valve. As a "normally open" device, the valve remains open in its default state (allowing water to flow to the cutting head) when no air signal is present. When pneumatic pressure (suggested 75-125 PSIG) is applied, the actuator drives the valve stem closed, stopping the water flow and dumping the high-pressure water as a safety function . It is a core component of the bleed down system, which provides emergency pressure release and controlled water flow shutoff .
The assembly typically includes the actuator cylinder, piston, seals, and bearing disk. For complete valve function, this actuator is mounted on a compatible valve body, where it works together with the valve stem, seat, and seal assemblies . This part number is an OEM replacement for KMT (KMT Waterjet Systems) and is also cross-referenced with WK000167 and 10138824 .
Applications:
Actuates the primary safety dump valve (bleed-down valve) on 60,000 PSI waterjet cutting systems .
Installed on the pneumatic valve body to control the high-pressure water supply line between the intensifier pump and the cutting head .
Provides rapid, air-powered closure of the waterjet flow for emergency stops, program pauses, or tool changes .
Compatible with KMT (KMT Waterjet Systems), AccuStream, and other standard waterjet systems .
Features:
Normally Open (NO) Configuration: The valve is open by default, allowing water to flow. Applying compressed air (75-125 PSIG) closes the valve to stop the jet .
3-Port Round Body Design: Engineered specifically for the dump valve role, featuring standard 3/8" HP (High-Pressure) side connections and a 1/8-27 NPT air intake port .
Pneumatic Actuation: Converts standard plant air supply (75-125 PSIG) into reliable linear mechanical force for valve operation .
Durable Construction: Built to withstand the harsh waterjet environment, including vibration, water mist, and extreme pressure cycling .
Direct OEM Replacement: Interchangeable with OEM numbers: KMT #20427739, WK000167, 10138824 .
Maintenance:
When to Service (Failure Diagnosis)
Valve Fails to Open/Close: If the waterjet does not stop when the control signal is given, or fails to restart, the actuator may be malfunctioning or have an air supply issue .
Slow or Sluggish Actuation: A delayed or sluggish valve response indicates internal wear, low air pressure, or seal degradation within the actuator .
External Air Leakage: A hissing sound or feeling air escaping from the actuator body indicates worn piston rod seals or a cracked housing, requiring immediate service.
Inability to Build or Hold Pressure: If the pump cycles erratically or fails to maintain pressure, the actuator may not be fully closing the dump valve, causing internal bypass .
Inspection and Replacement Guidelines
Full Depressurization (Critical): Before any maintenance, place the main electrical disconnect in the OFF position, bleed down all high-pressure water and hydraulic lines, and shut off and vent the compressed air supply. Severe injury can result if the system is not properly locked out .
Test Air Supply: First, verify the air supply is within the required range (75-125 PSIG) and that the supply line is not kinked or blocked . A faulty solenoid valve can also prevent air from reaching the actuator .
Complete Assembly Replacement: This component is often serviced as a complete assembly. If internal seals or the piston fail, replacing the entire actuator is the standard procedure to ensure reliable operation .
Inspect for Corrosion: Check the actuator body and connections for signs of rust or physical damage, especially in high-moisture environments .
Torque Compliance: When reinstalling the actuator onto the valve body, tighten the mounting hardware to the torque values specified in the equipment service manual to prevent air leaks and ensure proper alignment.
Service Tip: During actuator replacement, it is highly recommended to inspect the valve body, seat (10178697), stem (20435636), and seals (20428052) for wear. Servicing these components together helps restore fast valve response and consistent shutoff performance .
