English Translation of Title:

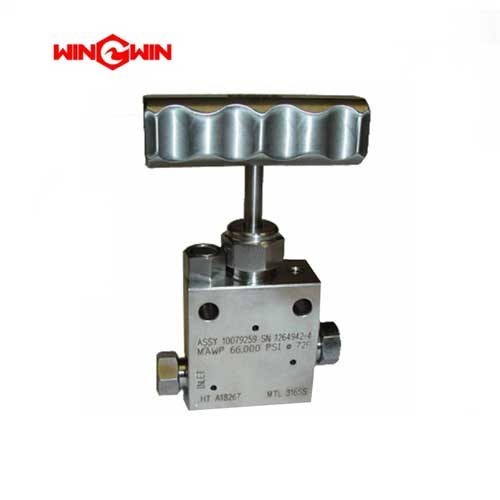

High-Pressure Fitting and Valve Assembly for Water Jet Cutting Machine Parts – 2-Way Straight, Model No. 10079259-High-Pressure-Fitting-and-Valve-Assemblies-2-Way-Straight-25.910.3-1

Introduction, Application, Features, and Maintenance:

This component is a 2-way straight high-pressure fitting combined with an integrated valve assembly, designed specifically for water jet cutting machinery. It provides direct in-line flow control without requiring separate valve bodies.

Application:
Used to control the on/off state or regulate the flow rate of high-pressure water in water jet cutting systems. Common installation locations include the main high-pressure line between the pump and cutting head, as well as bypass or drain circuits.

Features:

• Engineered to withstand extreme pressures typical in water jet cutting, up to 6,000 bar (87,000 psi).

• Straight, two-port configuration maintains linear flow and minimizes pressure loss.

• Integrated valve eliminates the need for additional external valves, reducing potential leak points.

• Manufactured from high-strength, corrosion-resistant alloy suitable for high-velocity water and abrasive slurry.

• Compact and streamlined design facilitates easy integration into dense piping layouts.

Maintenance:

• Regularly inspect the valve stem, sealing surfaces, and internal components for signs of wear, erosion, or leakage.

• Operate the valve periodically to ensure smooth actuation and proper seating.

• If internal bypassing or pressure drop is detected, replace seals or the complete assembly immediately.

• Always use recommended torque values when connecting or disconnecting adjacent fittings.

• Replace the unit immediately if any visible cracking, thread damage, or surface pitting is observed.
