English Translation of Title:
Water Jet Cutting Machine Parts – Cross Fitting, Model/No. 10079168-Water-Jet-Cutter-Parts-Cross-56.937.3-1

Introduction, Application, Features, and Maintenance:

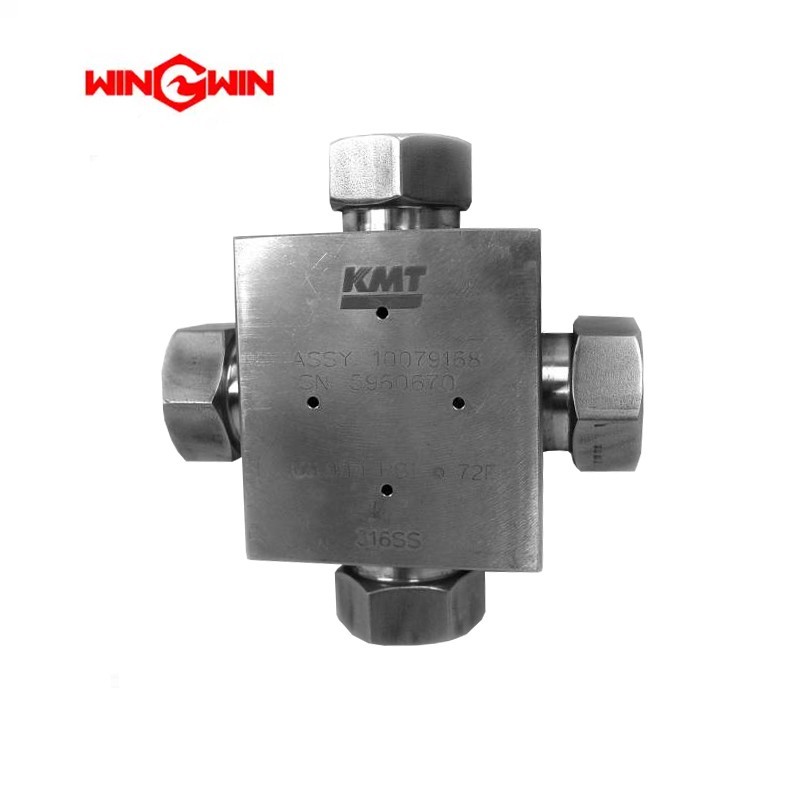

This component is a high-pressure cross fitting designed for water jet cutting systems. It features four connection ports arranged in a cross configuration, allowing multiple directional flow paths within the high-pressure plumbing network.

Application:
Used to distribute or collect high-pressure water flow in abrasive water jet cutting machines, typically connecting the pump, cutting head, pressure sensors, or bypass lines.

Features:

• Capable of withstanding extreme pressures common in water jet cutting (up to 6,000 bar / 87,000 psi).

• Equal flow paths through all four ports to reduce pressure imbalance.

• Manufactured from high-strength, corrosion-resistant material to handle abrasive slurry and high-velocity water.

• Compact body allows integration into dense hydraulic layouts.

Maintenance:

• Regularly inspect all four ports for signs of erosion, cracking, or thread damage.

• Replace immediately if any surface pitting or leakage is detected.

• Follow specified torque values when tightening connections.

• Use only recommended seals and washers during reassembly.
