English Translation of Title:

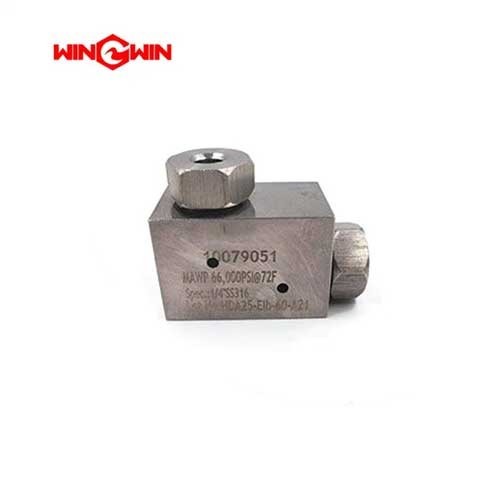

High-Pressure Elbow for Water Jet Cutting Machine Parts, 25 x 25, 90 Degrees, Model/No. 10079051-Water-Jet-Parts-HP-Elbow-25-x-25-90D.939.3-1

Introduction, Application, Features, and Maintenance:

This component is a high-pressure elbow designed for water jet cutting systems. It connects two sections of high-pressure tubing at a 90-degree angle, both with a 25 mm x 25 mm interface.

Application:
Used to redirect high-pressure water flow in abrasive water jet cutting machines, typically between the pump and cutting head or within high-pressure plumbing lines.

Features:

• Withstands extreme pressures commonly seen in water jet cutting (up to 6,000 bar / 87,000 psi).

• Precision 90-degree bend minimizes pressure loss and flow turbulence.

• Made from corrosion-resistant, high-strength material to endure abrasive slurry and high-velocity water.

• Compact design allows installation in tight machine spaces.

Maintenance:

• Regularly inspect for signs of erosion, cracking, or leakage around the bend.

• Replace immediately if surface pitting or thread damage is observed.

• Follow manufacturer torque specifications for reassembly.

• Use only compatible seals and washers during servicing.
