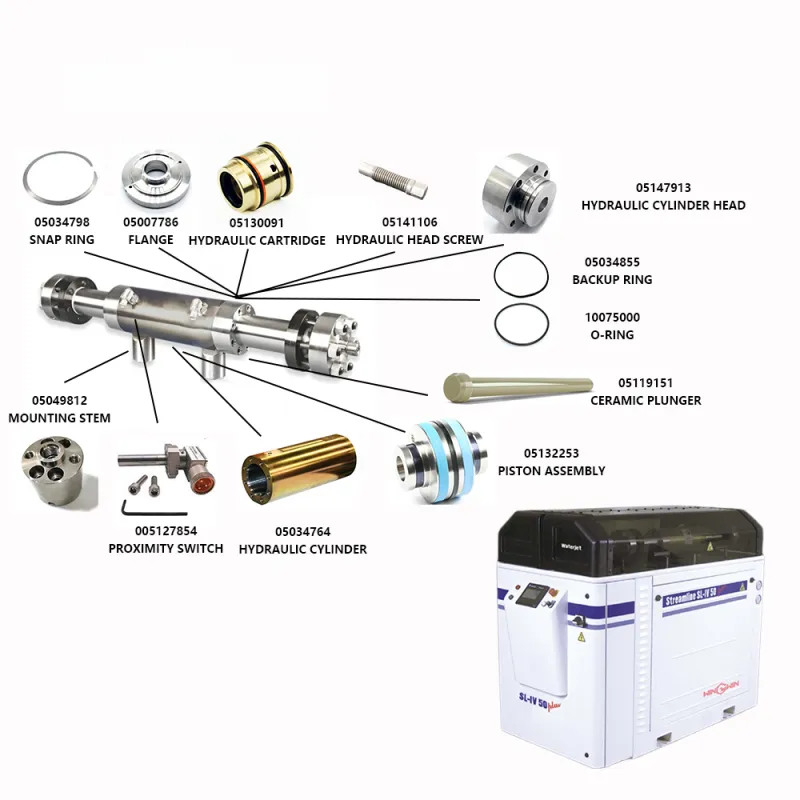

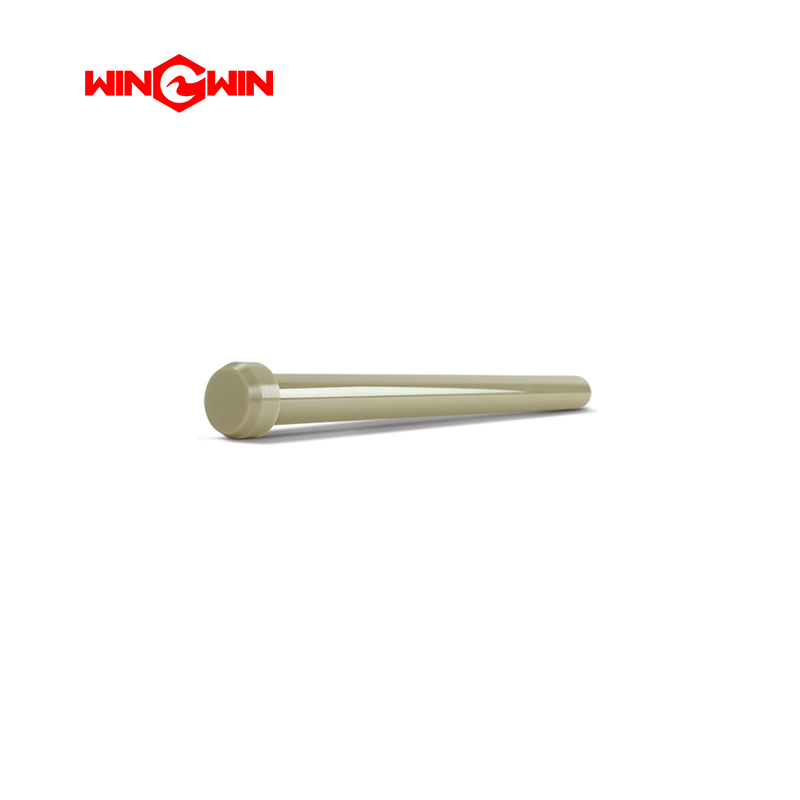

Product ID: 05119151 – Ceramic Plunger (Intensifier Pump Component)

Description:
This component is a ceramic plunger designed for high-pressure waterjet intensifier pumps . It is a precision-engineered, cylindrical reciprocating component that moves within the high-pressure cylinder to compress water to ultra-high pressures. The plunger is manufactured from advanced ceramic material, providing exceptional hardness, wear resistance, and corrosion resistance for extended service life under extreme cycling conditions . This plunger is designed for use with specific intensifier pumps and is compatible with .875 inch (7/8") plunger block systems . This part number may be associated with SL-V, SL-IV, Classic, and OEM intensifier assemblies .

Applications:

• Used as the reciprocating pressure-generating element within the high-pressure cylinder of a waterjet intensifier pump .

• Installed in the high-pressure water section where linear motion of the plunger creates pressure intensification, compressing water to cutting pressures .

• Suitable for ultra-high pressure waterjet systems operating at 55,000–60,000 PSI (approximately 3,800–4,137 bar) .

Features:

• Manufactured from advanced ceramic material, typically zirconia (zirconium dioxide) or alumina (aluminum oxide), known for extreme hardness and smooth surface finish .

• Provides exceptional wear resistance against high-pressure seals, reducing seal wear and extending seal life .

• Highly corrosion-resistant and chemically inert, compatible with fresh water, tap water, and water treatment additives .

• Precision-ground and polished surface finish minimizes friction and heat generation during reciprocation .

• Resists scoring and scratching that commonly occurs on metallic plungers, maintaining sealing effectiveness over longer periods .

• Designed to withstand rapid pressure cycling without fatigue failure typical of some metal components .

• Lower coefficient of friction compared to steel plungers, reducing power consumption and heat buildup .

Maintenance:

• Handling Caution: Handle the ceramic plunger with extreme care. Ceramic materials are very hard but can be brittle and may crack or chip if dropped or struck against hard surfaces .

• Inspection: Before installation, inspect the plunger surface for cracks, chips, spalling, scoring, or unusual wear patterns under good lighting. Inspect the entire cylindrical surface and both end faces; any visible crack or chip warrants immediate replacement .

• Cleaning: Clean the plunger with a soft, lint-free cloth and low-pressure water or isopropyl alcohol. Avoid abrasive cleaners, tools, or materials that could damage the polished surface .

• Dimensional Check: Measure the plunger diameter at multiple points using a micrometer to detect uneven wear or out-of-round condition. Replace if wear exceeds manufacturer-specified limits .

• Simultaneous Replacement: When replacing a worn plunger, always inspect and, if necessary, replace the corresponding high-pressure cylinder, seals, and backup rings to ensure proper fit and optimal performance .

• Bushing/Flange Inspection: Inspect the bushing retainer flange (e.g., Product ID 05007786) and bushing assembly for wear or damage. Poor concentricity or a worn bushing can cause ceramic plunger damage or breakage during operation .

• Full Depressurization: Always fully depressurize the waterjet system and follow lockout/tagout procedures before removing or servicing the plunger .

• Lubrication: Before installation, apply manufacturer-recommended assembly lubricant to the plunger surface to prevent dry startup and reduce initial friction .

• Storage: Store spare ceramic plungers in protective packaging away from edge contact or impact to prevent pre-service damage .
