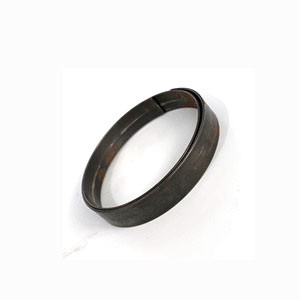

Product ID: 05130216 – Flat Snap Ring

Description:
This component is a flat snap ring, also known as a retaining ring or circlip, designed for waterjet cutting systems. It is a thin, flat, circular fastener that fits into a machined groove on a shaft or inside a bore to secure components such as seals, bearings, pistons, or valve parts in place.

Applications:

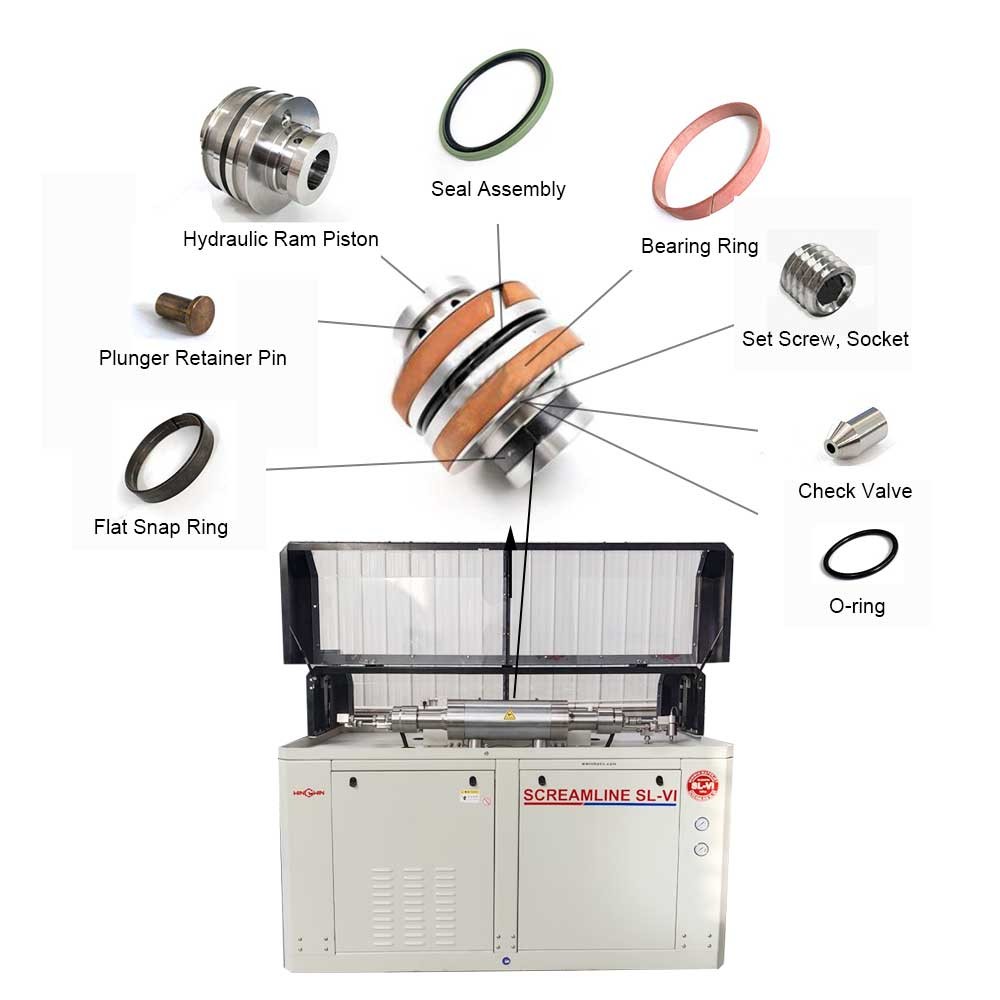

• Used in waterjet cutting machines to retain high-pressure components such as intensifier pistons, plungers, valve assemblies, or seal carriers.

• Installed within bore grooves or on shaft grooves to provide a positive stop or locking mechanism for adjacent parts.

• Suitable for both pure water and abrasive waterjet systems where secure axial retention is required.

Features:

• Flat profile with an open gap or end configuration allows for compression and installation into a groove.

• Manufactured from spring-tempered carbon steel or stainless steel for high tensile strength and resistance to deformation.

• Precision-stamped or wire-formed to exact dimensions for consistent fit within standard groove specifications.

• Provides reliable axial retention without requiring additional fasteners or threading.

• Corrosion-resistant surface treatment such as zinc plating or passivation for extended service life in wet environments.

Applications in Assembly:

• Used to retain seal stacks and backup rings within high-pressure cylinders or valve bodies.

• Prevents axial movement of components under dynamic pressure cycling and vibration.

• Allows for disassembly during maintenance without damaging surrounding parts.

Maintenance:

• During disassembly, use proper snap ring pliers designed for flat retaining rings to avoid distorting the ring.

• Inspect the snap ring for deformation, cracking, corrosion, or loss of spring tension before reuse.

• Check the corresponding groove inside the bore or on the shaft for wear, burrs, or damage that could affect proper seating.

• Replace any snap ring that shows signs of permanent bending, twisting, or fatigue.

• Ensure the snap ring is fully seated in the groove after installation; partial seating may lead to component failure under pressure.

• Always depressurize the waterjet system completely before disassembling any component secured by a snap ring.

• Do not stretch a flat snap ring beyond its designed working range; over-expansion can cause loss of retaining force.

• When replacing seals or other internal components, install a new snap ring if recommended by the equipment manufacturer.
