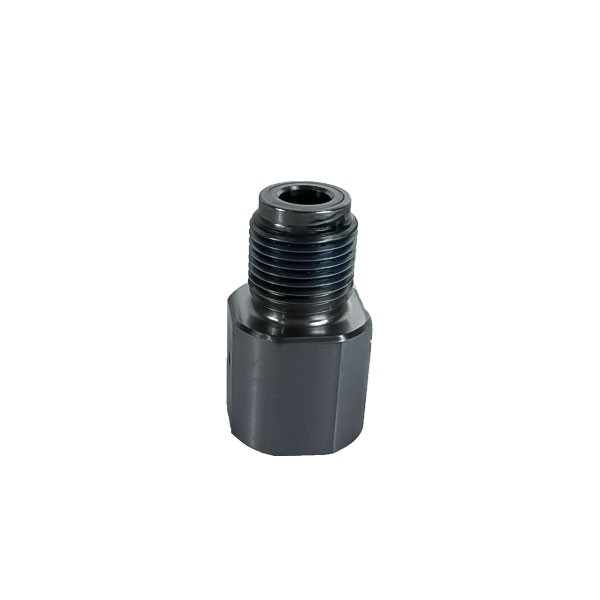

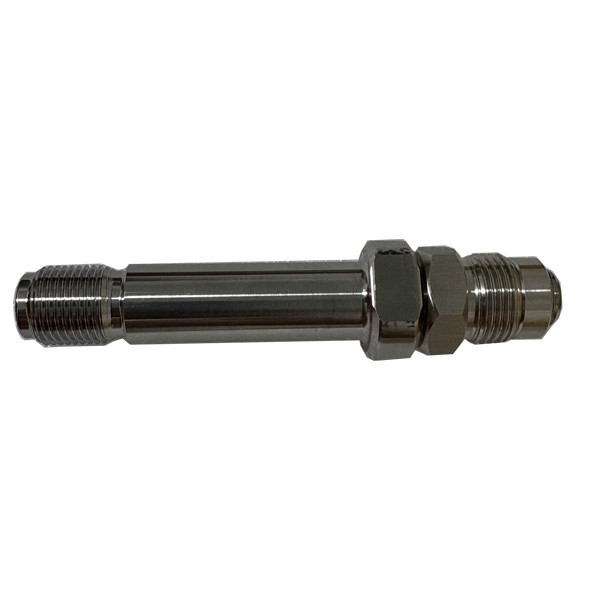

Product Name: Assembly 433 – Adjustable P-III Nozzle Body (Part No. 301099-1)

Description:
This component is a complete Adjustable Nozzle Body assembly for the P-III series cutting head, commonly used on 60,000 PSI (approximately 4,137 bar) waterjet cutting systems. The "433" designation in the part name refers to a specific factory configuration or variant of this nozzle body assembly.

The assembly consists of a precision-machined nozzle body with an adjustable gland design. This unique feature allows the operator to tighten the internal mixing chamber and seal stack while maintaining the abrasive feed line oriented in a specific fixed direction. This is critical for preventing the abrasive hose from twisting or binding when the cutting head is installed in tight or angled positions.

As a complete assembly, it includes the main body, the adjustable gland nut, and all necessary internal components required for direct installation onto a P-III style on/off valve or cutting head adapter. It is designed to accept the water orifice (sapphire or diamond nozzle) and mixing chamber components, and it serves as the primary interface for the focusing tube (mixing tube) and abrasive supply line.

Applications:

• Mounts directly onto P-III series on/off valves as the primary cutting head body

• Serves as the core housing for the water orifice and mixing chamber in 60,000 PSI waterjet systems

• Allows fixed orientation of the abrasive feed line for optimized hose routing

• Suitable for both 3-axis flat cutting and multi-axis cutting head configurations

• Used in abrasive waterjet cutting of metals, stone, glass, ceramics, and composites

Features:

• Complete Assembly: Fully assembled and ready to install; includes all necessary internal components

• Adjustable Gland Design: Allows tightening of the mixing chamber while maintaining fixed abrasive inlet orientation, preventing hose binding

• P-III Series Compatibility: Standardized interface for P-III cutting heads ensures proper fitment with on/off valves and adapters

• High-Pressure Rating: Engineered for continuous operation at 60,000 PSI (4,137 bar)

• Stainless Steel Construction: Precision-machined from corrosion-resistant material for long service life

• Drop-in Replacement: Direct OEM replacement for H2O Jet systems; cross-referenced as part number WE000246

Maintenance:

Inspection and Failure Diagnosis:

• External Water Leakage: Water weeping from the nozzle body joints indicates loose components or worn seals requiring immediate service

• Cutting Performance Degradation: Reduced cutting speed or poor edge quality may indicate misalignment of internal components or worn orifice/mixing tube

• Abrasive Flow Issues: Inconsistent or interrupted abrasive suction may be caused by internal damage or misalignment within the nozzle body

• Jet Divergence: A scattered or non-coherent waterjet stream indicates orifice wear or internal misalignment

• Visual Inspection: During disassembly, check the nozzle body for cracks, thread damage, or internal bore erosion

Maintenance Procedures:

• Component Alignment: Ensure the water orifice, mixing chamber, and focusing tube remain perfectly aligned within the nozzle body to prevent uneven wear and maintain jet coherence

• Seal Replacement: Always replace all O-rings and high-pressure seals whenever the nozzle body is disassembled for service. Do not reuse old seals

• Abrasive Inlet Check: Verify the abrasive feed line connection is secure and free from blockages. Clean the abrasive inlet port as needed

• Adjustable Gland Care: The adjustable gland feature allows fine-tuning of internal component compression. If leakage occurs, check and re-torque the gland components to manufacturer specifications

• Mixing Tube Rotation: To avoid uneven wear and extend focusing tube life, rotate the mixing tube 90 degrees at regular intervals

• Cleaning: Clean the internal passages with low-pressure water and soft brushes to remove abrasive debris and mineral deposits. Do not use metal tools that could scratch sealing surfaces

• Lubrication: Apply high-pressure thread lubricant to all threaded connections during reassembly to prevent galling and ensure accurate torque application

• Torque Compliance: Tighten all retaining components to the torque values specified in the equipment service manual

• Full Depressurization: Always fully depressurize the waterjet system, shut off the water supply, bleed high-pressure lines, and follow lockout/tagout procedures before servicing the nozzle body

Replacement Criteria:

• Replace the complete nozzle body assembly if the main body shows cracks, internal bore erosion, thread damage, or deformation

• Replace if the adjustable gland mechanism no longer provides proper compression or becomes seized

• Replace if leaking persists after seal replacement and proper torquing

Water and Abrasive Quality Impact:

• Poor water quality with contaminants accelerates internal component wear and seal degradation

• Maintaining proper water filtration (5-10 micron range) and using high-quality, dry garnet abrasive maximizes nozzle body service life
