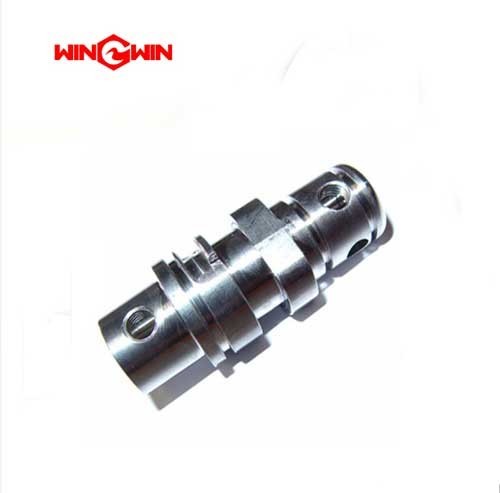

Product ID: 05073820 – Nozzle Body / Mixing Chamber Cartridge (Autoline™ I)

Description:
This component is a nozzle body, also known as a mixing chamber cartridge, designed specifically for Autoline™ I abrasive waterjet cutting systems. It is a precision-machined component that serves as the central housing within the cutting head assembly, where the high-pressure waterjet and abrasive particles are combined before exiting through the focusing tube . This part is a key element of the Autoline I abrasive nozzle assembly .

Applications:

• Used as the core mixing chamber in Autoline™ I abrasive waterjet cutting heads .

• Installed between the nozzle cap and the focusing tube assembly to facilitate the mixing of high-pressure water with abrasive garnet .

• Suitable for ultra-high pressure waterjet systems operating at 60,000 PSI (approximately 4,137 bar) and compatible with Autoline I series components .

Features:

• Constructed from high-strength, wear-resistant material (typically hardened stainless steel) to withstand the erosive environment inside the mixing chamber .

• Precision-machined internal geometry ensures optimal mixing of water and abrasives for maximum cutting efficiency .

• Features the Autoline™ self-aligning design, which ensures perfect alignment between the orifice, mixing chamber, and focusing tube, extending the life of consumable parts .

• Designed as a replacement component within the Autoline I abrasive nozzle assembly .

• This nozzle body is compatible with specific O-rings and wear inserts as part of the complete Autoline I assembly .

Maintenance:

• Regularly inspect the internal bore of the nozzle body for signs of erosion, wear, or diameter enlargement caused by abrasive flow.

• During overhaul of the cutting head, disassemble the nozzle assembly and clean the nozzle body thoroughly; remove any compacted abrasive debris from the mixing chamber.

• Check the sealing surfaces and threads for damage or corrosion before reassembly.

• Replace the nozzle body if the internal mixing chamber shows significant wear, erosion, or dimensional changes that affect cutting performance or abrasive mixing efficiency.

• When replacing, always use a complete set of compatible seals and O-rings (such as those used in the Autoline I assembly) to ensure leak-free operation .

• Follow the equipment service manual for correct disassembly and reassembly procedures of the Autoline I cutting head.
