Product ID: 05039771 – Plunger Assy Pump / Carbide Plunger Assembly

Description:

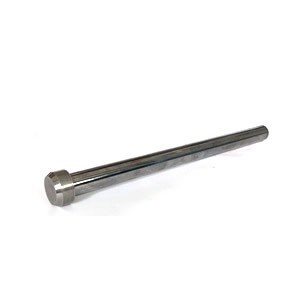

This component is a high-pressure plunger assembly, specifically a solid carbide plunger designed for use in waterjet intensifier pumps . The "Plunger Assy PMP 875-8" designation indicates compatibility with pumps utilizing a 0.875 inch (7/8") diameter plunger configuration . This precision-engineered component is the reciprocating element responsible for compressing water from low pressure to ultra-high cutting pressures within the intensifier cylinder .

The plunger is manufactured from solid tungsten carbide, a material chosen for its exceptional hardness, wear resistance, and dimensional stability under extreme operating conditions . The component features a precision-ground surface finish to minimize friction against high-pressure seals, extending both seal life and plunger service life . This assembly is rated for continuous operation up to 87,000 PSI (approximately 6,000 bar) .

Applications:

• Used as the primary reciprocating pressure-generating element within the high-pressure cylinder of waterjet intensifier pumps

• Installed in the high-pressure water section where linear motion of the plunger compresses water to cutting pressures

• Suitable for ultra-high pressure waterjet systems operating up to 60,000–87,000 PSI (approximately 4,137–6,000 bar)

• Compatible with KMT intensifier assemblies including SL-I, SL-IV Plus, SL-V, SL-VI, Classic series, HSEC units, and OEM intensifier systems

• Compatible with the 1-1/8 inch x 8 inch high-pressure cylinder configuration (20460891)

Features:

• Tungsten Carbide Construction: Manufactured from solid, premium-grade tungsten carbide for extreme hardness, corrosion resistance, and dimensional stability under continuous high-cycle operation

• Precision-Ground Surface Finish: Features an ultra-smooth, precision-ground surface that minimizes friction with dynamic seals, reducing seal wear and extending service intervals

• 0.875 Inch Diameter: Designed for standard 7/8 inch plunger block configurations, ensuring compatibility with a wide range of intensifier pump models

• 87,000 PSI Pressure Rating: Engineered for continuous operation at pressures up to 87,000 PSI (6,000 bar), with compatibility for 60,000 PSI systems

• High Fatigue Resistance: The carbide material provides exceptional resistance to fatigue failure under millions of pressure cycles

• Lightweight Material: Tungsten carbide is dense but the plunger's solid construction ensures stability; approximate weight is 0.05 kg (0.11 lbs) according to one source , while another indicates 2.08 kg (4.6 lbs) for a complete assembly

Maintenance:

• Critical Wear Component: The carbide plunger is a primary wear component that undergoes continuous reciprocating motion under extreme pressure. Regular inspection and replacement are essential for maintaining pump performance and preventing damage to other components.

• Handling Caution: Tungsten carbide is extremely hard but brittle. Handle with care to avoid impact damage, chipping, or cracking. Dropping or striking the plunger against hard surfaces can cause catastrophic failure.

• Surface Inspection: Before installation, inspect the plunger surface under good lighting for any signs of scoring, scratching, pitting, chipping, cracking, or uneven wear patterns. Any visible surface defect warrants immediate replacement.

• Dimensional Inspection: Measure the plunger diameter at multiple points along its length and circumference using a precision micrometer. Replace if any out-of-round condition or wear beyond manufacturer-specified limits is detected.

• Inspection During Seal Replacement: Each time the high-pressure seal assembly (HP seal) is replaced, inspect the plunger surface for wear or damage. A damaged plunger will rapidly destroy new seals.

• Concurrent Bushing/Flange Inspection: Inspect the bushing retainer flange (e.g., Product ID 05007786) and bushing assembly for wear or damage. Poor concentricity or a worn bushing can cause ceramic plunger damage or breakage during operation.

• Lubrication During Installation: Before installation, apply a generous amount of manufacturer-recommended high-pressure grease or assembly lubricant to the plunger surface to prevent dry startup and reduce initial friction against seals.

• Full Depressurization: Always fully depressurize both the hydraulic system and the high-pressure water system before removing or servicing the plunger. Follow lockout/tagout procedures.

• Storage: Store spare plungers in protective packaging away from edge contact or impact to prevent pre-service damage. Keep in a clean, dry environment.

• Compatibility Verification: Before installation, verify that the plunger matches the specific intensifier model, pressure rating (60K or 87K), and plunger block size (0.875 inch). Cross-reference part numbers include 5000079 .
