Product Name: 5-Axis Rotary Joint

Description:

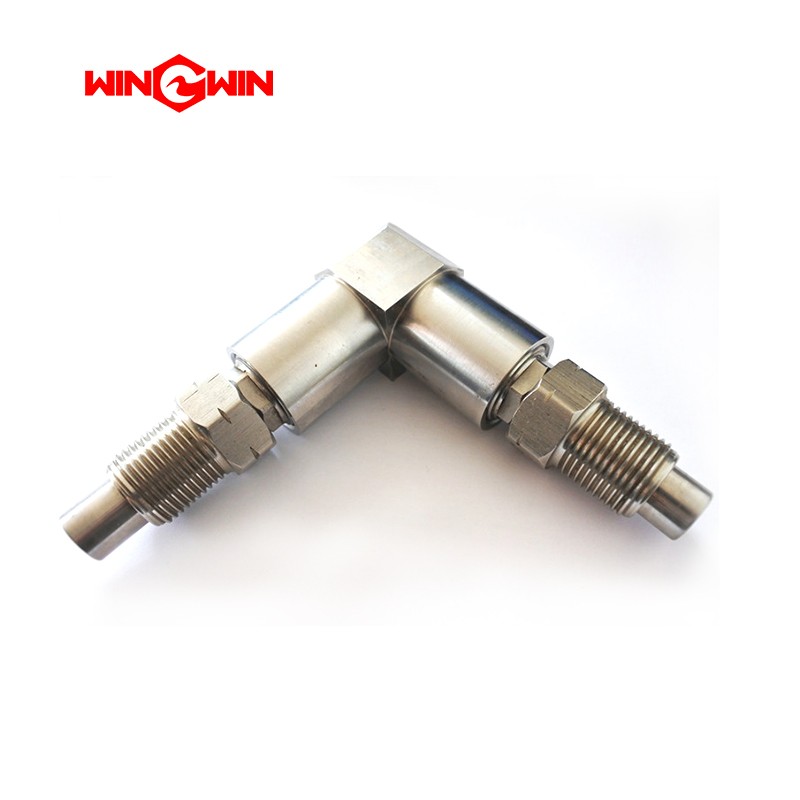

This component is a 5-axis rotary joint, also known as a high-pressure swivel or infinite rotation coupling, specifically designed for 5-axis waterjet cutting systems . It is a precision-engineered mechanical component installed within the cutting head assembly, enabling the cutting head to rotate continuously (often infinitely) while delivering ultra-high-pressure water, abrasive material, and control signals to the nozzle .

Unlike a simple adapter, the rotary joint facilitates motion along the additional A and C axes, allowing the waterjet to cut bevels, complex 3D profiles (such as impellers), and perform taper compensation without twisting or tangling the supply hoses .

Applications:

• Enables infinite or continuous rotation (C-axis) of the cutting head for nesting cuts without breakpoints .

• Facilitates tilting motion (B or A-axis) up to +/- 60° for bevel cutting and weld prep .

• Transmits high-pressure water (typically up to 60,000-90,000 PSI / 4,000-6,200 bar) and abrasive to the cutting head during multi-axis motion .

• Suitable for complex 3D machining of materials such as titanium, marble, composites, and armor plate .

Features:

• Infinite Rotation Capability: Many 5-axis joints support unlimited Z-axis rotation, allowing the cutting head to rotate without stopping to unwind hoses, which is critical for complex nested parts .

• Compact Design: Integrated design reduces the number of mechanical components subject to fatigue .

• High-Pressure Integrity: Utilizes specialized rotary seals (often in a cartridge format) to prevent high-pressure water leaks and abrasive ingress during continuous rotation .

• Multi-Channel Transmission: Allows simultaneous passage of high-pressure water, air, abrasive, and electric cables/signals through a single, sealed axial bore .

• Automatic Taper Compensation: Works in conjunction with CNC software (IKC/Intelligent taper compensation) to dynamically adjust the head angle for perfect edge squareness .

Maintenance:

• Leak Detection: Regularly inspect the rotary joint connections for high-pressure water leakage. If a leak is detected, immediately depressurize the system and repair/replace seals .

• Seal Replacement: The rotary seals (B-axis or C-axis seal kits) are common wear items. They should be replaced when visible leakage occurs or during scheduled overhauls .

• Preventive Cleaning: Keep the joint free of abrasive dust and debris to prevent external components from seizing or wearing prematurely .

• Lubrication: For rotary joints containing bearings or mechanical gearing (like nutator designs), follow the manufacturer's schedule for high-pressure grease application .

• Full Depressurization: Before performing any maintenance on the rotary joint, always fully depressurize the waterjet system, disconnect electrical power, and follow lockout/tagout procedures to ensure safety .
