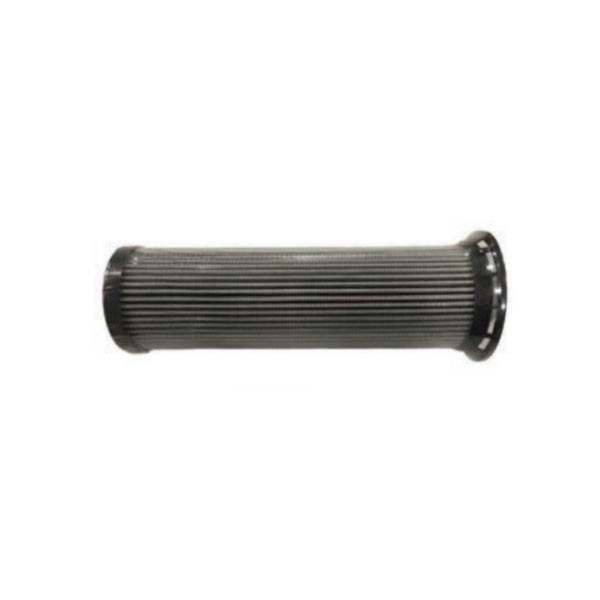

Product Name: Hydraulic Oil Filter Cartridge (10 Micron) – Part No. 606210-6-F

Description:
This component is a replacement hydraulic oil filter cartridge with a 10-micron filtration rating. It is specifically engineered for the hydraulic systems of waterjet intensifier pumps in the 10–50 horsepower range. The “10 Micron” designation indicates that the element is designed to remove fine particulate contaminants, including metal wear particles, silt, and sludge, from the hydraulic fluid to maintain high system cleanliness.

This cartridge is typically installed in a return line filter housing or off-line filtration circuit (kidney loop). Its primary function is to ensure that the hydraulic oil circulating to the intensifier pump is free of damaging debris, which protects the pump’s internal components from premature wear and ensures consistent system performance. It is classified as a consumable wear part with a spin-on or cartridge-style configuration for easy replacement.

Applications:

• Primary filtration in the hydraulic return line of 10–50 HP waterjet intensifier pumps.

• Protecting hydraulic valves, servo mechanisms, and pump internals from fine particulate contamination.

• Used during scheduled preventive maintenance or when oil cleanliness standards require filter replacement.

Features:

• Filtration Rating: 10 microns absolute/nominal for fine contaminant removal.

• Flow Compatibility: Designed for the flow rates of 10–50 HP hydraulic power units.

• Consumable Component: Single-use, replaceable cartridge; not intended for cleaning.

• High Efficiency: Removes fine particles that cause valve sticking and component wear.

Maintenance:

When to Replace (Failure Diagnosis):

• Scheduled Maintenance: Replace based on manufacturer guidelines (typically every 500–1,000 operating hours) to prevent unplanned downtime.

• Clogging Indicator: If the system is equipped with a differential pressure gauge or pop-up indicator, replace the element immediately when a blockage is signaled.

• Hydraulic Performance Issues: Slow intensifier cycling, difficulty reaching cutting pressure, or unusual pump noise may indicate a clogged filter restricting flow.

• Fluid Condition: If oil analysis shows high particle counts or the oil appears dark or hazy, inspect and replace the filter.

Replacement Guidelines:

• Full Depressurization: Before maintenance, completely shut down the system, stop the hydraulic pump, and follow lockout/tagout procedures to release all residual pressure.

• Clean Mounting Surface: Wipe the filter head’s sealing surface clean to prevent debris ingress.

• Lubricate Seal: Apply a thin film of clean hydraulic oil to the new O-ring seal to ensure proper seating without tearing.

• Hand Tighten Only: Spin the new cartridge onto the head until the gasket contacts the surface, then tighten an additional 1/2 to 3/4 turn by hand. Do not use a wrench.

• Check for Leaks: After installation, run the system and inspect the filter head for external leakage.
