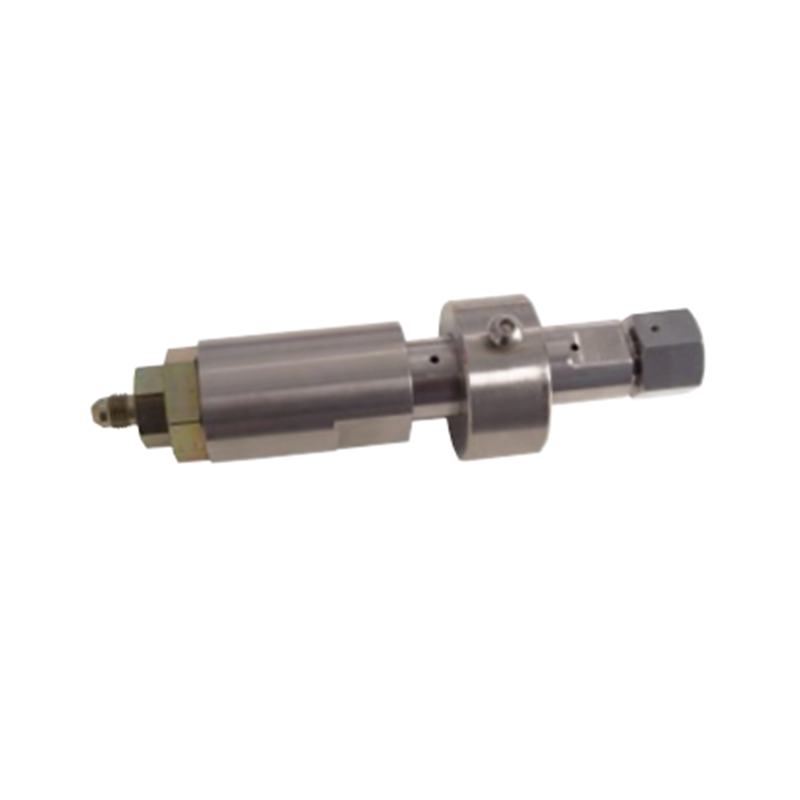

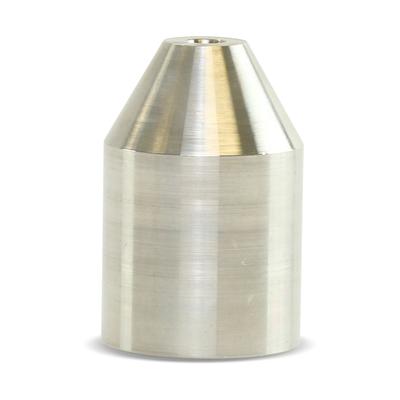

Product Name: Bleed Down / Dump Valve Assembly (Part No. 301013-1)

Description:
This component is a hydraulic bleed-down (dump) valve assembly for a 60,000 PSI (approximately 4,137 bar) waterjet intensifier pump . It is a critical safety component assembled into the discharge manifold of the high-pressure pump. The primary function of this valve is to rapidly release (dump) the ultra-high pressure water from the system back to the tank or a low-pressure drain when the cutting jet is turned off, or when an emergency stop is triggered.

Cross-reference part numbers for this assembly include 1-11480 and C-5841-1 . It is manufactured from high-grade stainless steel for corrosion resistance, combined with rubber and plastic sealing elements to maintain pressure integrity . The weight of this assembly is approximately 1.3 kg .

Applications:

• Mounted on the high-pressure discharge manifold of the waterjet pump.

• Provides a safety dump path for high-pressure water when the cutting head is deactivated.

• Prevents dangerous pressure spikes and accidental discharge during maintenance or system stop states.

Features:

• Critical Safety Component: Essential for safely de-pressurizing the system to protect operators and equipment.

• Stainless Steel Construction: Corrosion-resistant body ensures longevity in water-rich environments .

• Replaceable Internal Parts: The valve body is durable; however, internal seals and seats may wear over time and can be serviced using a repair kit.

Maintenance:

Pressure Relief (Safety Check)

• Full Depressurization: Before any maintenance on the system downstream of the pump, ensure the dump valve is open and the system pressure gauge reads zero to confirm all pressure has been safely released.

Leak Diagnosis

• External Leakage: If water is observed dripping from the valve body or vent ports when the system is pressurized but the jet is off, the internal seals (seat or poppet) are likely damaged or worn. The valve assembly should be disassembled and rebuilt immediately .

Repair Procedure (General)

• Repair Kit: Use the specific repair kit designed for this valve assembly (often available separately) which contains the seat, poppet, springs, and O-rings.

• Disassembly: Remove the valve body from the manifold. Carefully disassemble the components, noting the orientation of the poppet and spring.

• Inspection: Inspect the internal bore of the valve body for scoring, pitting, or wear. Replace the entire assembly if the housing is damaged.

• Reassembly: Lubricate new seals with high-pressure grease. Install the new seat, poppet, and seals carefully to avoid cutting the O-rings on threads.

• Torque Compliance: Tighten the valve retaining nut to the manufacturer’s specific torque specification to ensure proper sealing without damaging the body.

System Troubleshooting (Symptoms Related to Valve Failure)

• Slow Pressure Building: If the pump takes too long to reach cutting pressure, the dump valve may be leaking internally .

• Low Maximum Pressure: Inability to reach rated pressure could indicate the dump valve is not fully seating .

• Fluttering Pressure: Pressure instability at the nozzle can be caused by a faulty dump valve that is partially opening and closing, or by a sticking check valve .
