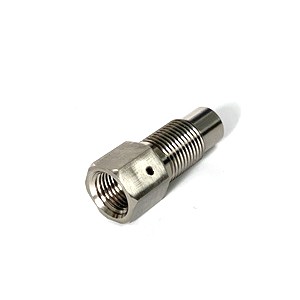

Product ID: 49830904 – High-Pressure Pneumatic Dump Valve Adaptor

Description:
This component is a high-pressure pneumatic dump valve adaptor designed for waterjet cutting systems. It is a three-port round adaptor that connects a pneumatic dump valve to the high-pressure water line. The adaptor features a female high-pressure connection and is used to facilitate controlled dumping or diversion of high-pressure water flow.

Applications:

• Used in waterjet cutting machines to interface a pneumatic dump valve with the high-pressure water circuit.

• Installed between the dump valve body and the high-pressure plumbing to enable rapid pressure release or jet stop functions.

• Suitable for ultra-high pressure waterjet systems, typically operating at 60,000 psi (approximately 4,137 bar) or higher.

Features:

• Constructed from hardened stainless steel or high-strength steel for exceptional pressure resistance and corrosion protection.

• Three-port configuration enables efficient fluid distribution and connection between the dump valve, intensifier, and cutting head.

• Female side connection is typically 1/4 inch high-pressure (HP) fitting for compatibility with standard 60K systems.

• Engineered for ultra-high pressure operation, with pressure ratings up to 90,000 psi (approximately 6,200 bar) depending on system specification.

• Precision-machined threads and internal sealing surfaces ensure leak-free operation under continuous high-pressure cycling.

• Compact design allows for convenient installation in tight assemblies within the waterjet power unit.

• Normally open configuration supports reliable pneumatic actuation of the dump valve.

Maintenance:

• Fully depressurize the waterjet system and disconnect power before servicing any component connected to this adaptor.

• Inspect the adaptor threads for signs of wear, galling, corrosion, or damage before each reassembly.

• Check both sealing surfaces and internal bores for pitting, erosion, or cracking caused by high-velocity water flow.

• Clean the adaptor thoroughly using a soft cloth and low-pressure water or compatible solvent; avoid abrasive tools that could damage sealing surfaces.

• Apply manufacturer-recommended thread lubricant or anti-seize compound to threads during reassembly to prevent galling and ensure proper torque.

• Tighten the adaptor to the torque value specified in the equipment service manual; over-tightening may damage threads while under-tightening may cause high-pressure leaks.

• Replace the adaptor if any thread damage, cracking, or surface erosion is detected.

• When replacing associated seals or O-rings, ensure they are compatible with the adaptor's port configuration and pressure rating.

• During dump valve servicing, inspect the adaptor for signs of wire drawing or erosion caused by frequent pressure cycling.

• Store spare adaptors in a clean, dry environment away from impact or corrosive substances.
